Stove for 16–22L Kazan with Chimney D44 cm, 3 mm

Price range: 170.00 € through 200.00 € incl. VAT

In stock

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm is a fully dismountable steel stove designed for outdoor cooking. It is suitable for 16–22L kazans, Afghan pressure cookers and other cookware. The stove features a three-piece chimney, damper, smoke deflector, adjustable firebox door and pull-out ash pan. It is made from 3 mm steel and coated with matt heat-resistant paint up to 800 °C.

Stove size / kazan capacity	36 cm / 8–12L 40 cm / 12–16L 44 cm / 16–22L 49 cm / 22–30L

Shelves

Clear

In-store pick-up: available tomorrow until 14.00

SKU: 8147 Categories: Outdoor Cauldron Stoves, Outdoor Cauldron Stoves with chimney

*Please note: All images are for illustrative purposes only. The color, pattern, or ornamentation of the product shown in the image may slightly differ from the actual product. The product description is general and may not include all features. Stock availability in the warehouse and online store may vary, and delivery terms are subject to change. If the order cannot be fully fulfilled, the customer will be informed immediately.

Description

Description

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm · 44 cm diameter, 3 mm steel, 173 cm overall height, three-piece chimney with damper, pull-out ash pan and fully dismountable construction

Diameter

44 cm

Metal thickness

3 mm

For kazans

16–22L

Weight

21 kg

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm is a practical, fully dismountable and easy-to-transport stove for cooking over an open fire outdoors, in the countryside or in the garden. It is designed for 16–22 litre kazans, but with suitable additional accessories it can also be used with Afghan pressure cookers, grates, frying pans, pots and other heat-resistant cookware.

The stove is made of black metal (standard steel). The body and bottom are made from 3 mm thick steel. The surface is coated with matt heat-resistant paint rated up to 800 °C. The coating improves the appearance of the stove and helps protect the metal during use, although the steel product still requires proper care and protection from moisture.

The overall outer diameter of the stove is 44 cm, while the inner diameter of the kazan opening is approximately 43.4 cm. The height from the ground to the body is 66 cm, while the total assembled height including the chimney reaches 173 cm. The stove weighs 21 kg.

The fully dismountable construction makes the stove convenient for transportation and storage. The chimney consists of one elbow and three separate sections. Each section is 35 cm long, while the pipe diameter is 8.5 cm. If necessary, the chimney can be extended by purchasing an additional section separately.

The chimney directs smoke above the cooking area, helping to keep it away from the cook’s face and making the stove considerably more comfortable to use. The combustion intensity and heat output can be regulated using the chimney damper, firebox door and pull-out ash pan.

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm is not limited to one type of cookware. It can be used with Uzbek cast iron kazans, Afghan pressure cookers, frying pans, pots and other suitably sized cookware. A cast iron grate or metal or cast iron ring set can be used for smaller-diameter cookware.

A cast iron grate can be used not only as a support for smaller cookware, but also for cooking meat, fish, vegetables and other food directly over the fire. A cast iron pan-lid can also be used. The grate, ring sets, pan-lid, side shelves, protective cover and additional chimney section are sold separately.

After cooking, the stove can also be used as an evening fire pit. The enclosed steel body keeps the fuel inside the stove, but it must only be placed on a stable, non-combustible surface at a safe distance from flammable materials.

Based on practical experience, with correct use and proper maintenance the approximate service life of the stove is 8–10 years. The actual service life depends on the intensity of use, type of fuel, operating temperature, storage conditions and protection of the metal against moisture.

Because the stove is made of standard steel, it must not be left wet, damp or exposed to precipitation for long periods. Once completely cooled, the stove should be cleaned, dried and stored in a dry place. A suitable protective cover is recommended to protect it from moisture and dust.

Advantages

✓ Designed for 16–22L kazans

✓ 3 mm steel body and bottom

✓ Fully dismountable construction

✓ Four removable legs secured with bolts

✓ Three-piece chimney with elbow

✓ Damper for controlling draught and heat intensity

✓ Internal smoke deflector for more efficient heat distribution

✓ External chimney retainer for a stable connection

✓ Three firebox door positions

✓ Pull-out and removable ash pan

✓ Side handles for transport and optional shelf installation

✓ Matt heat-resistant paint up to 800 °C

✓ Made in Uzbekistan

Construction features

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm features a carefully designed construction that allows combustion to be controlled, heat to be used more efficiently and makes the stove easier to operate, clean, transport and store.

Smoke deflector

The deflector installed inside the stove near the chimney outlet prevents flames and hot flue gases from escaping directly into the chimney. It redirects heat through the inside of the stove, promotes more even heating of the bottom and sides of the kazan and allows the heat generated by the fuel to be used more efficiently.

Chimney with damper

The chimney directs smoke above the cooking area, while the built-in damper allows the user to regulate flue-gas flow, draught, combustion intensity and the amount of heat inside the stove.

Three methods of combustion control

The intensity of the flame and heat can be regulated using the chimney damper, pull-out ash pan and firebox door. Changing the position of these components adjusts the draught and the amount of air supplied to the fuel.

Door with three positions

The firebox door can be fully closed, left slightly open by placing the handle in the outer locking hole, or fully opened. This allows the airflow to be adjusted according to the required cooking mode.

Pull-out ash pan

Ash and small fuel residues collect in the pan, making the stove easier to clean after use. The ash pan can also be pulled out slightly to increase the airflow from below and intensify combustion.

External chimney retainer

The retainer located outside at the chimney outlet secures the pipe position at the connection point, reduces the risk of movement and helps prevent the chimney from falling due to wind or accidental impact.

Removable and securely fixed legs

The four legs are inserted into their designated mounting points and secured with bolts. When correctly assembled, the stove stands securely on the surface, while the legs can be removed after use so the construction takes up less storage space.

Side handles and optional shelves

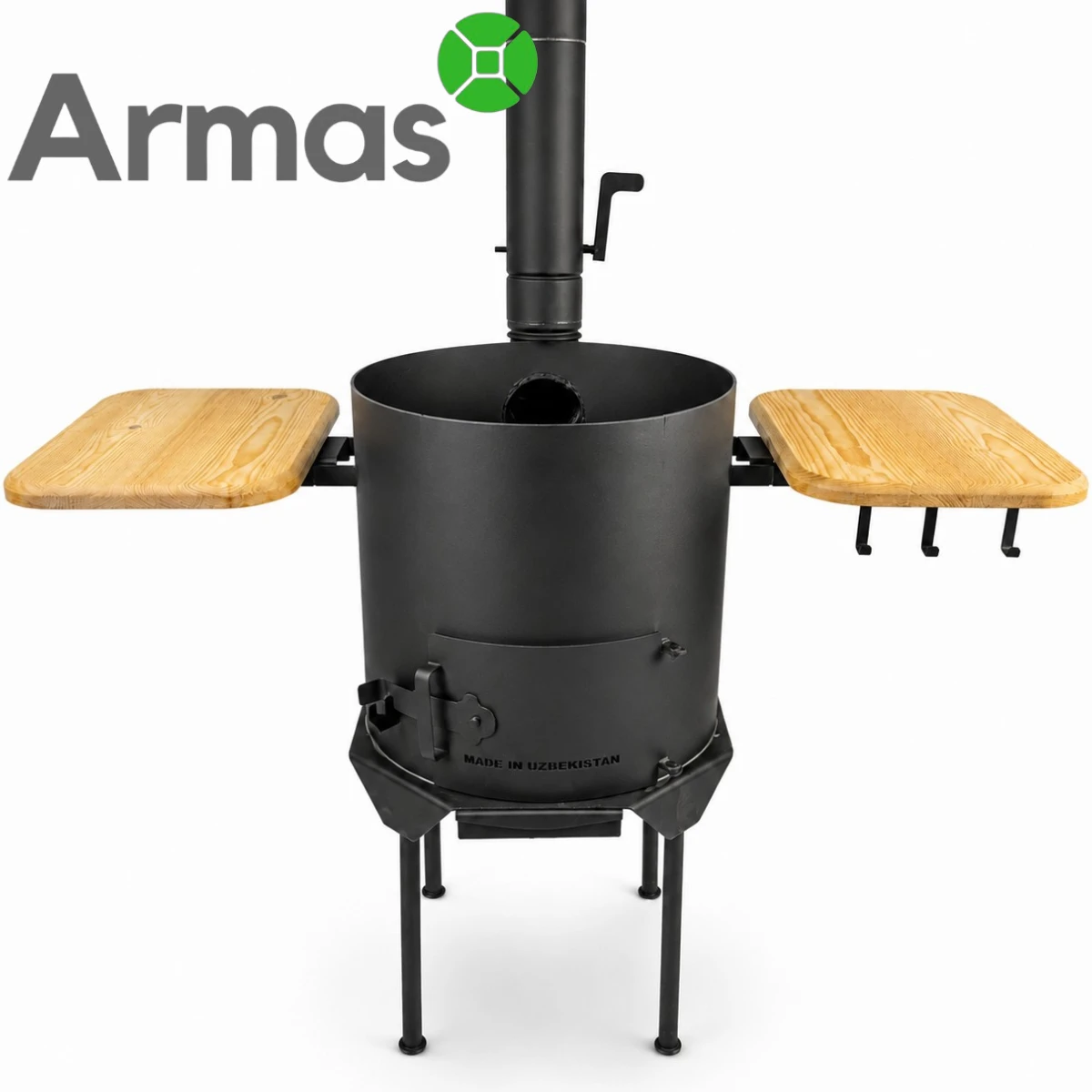

The side handles make it easier to carry the stove once it has cooled completely. They can also be used to install optional side shelves, available separately.

Extendable chimney

The chimney consists of three 35 cm sections and one elbow. If additional height is required, an extra chimney section can be purchased separately.

Optimal 3 mm steel thickness

In practical use, 3 mm steel provides a good balance between durability, weight, heat retention and ease of transportation. Thicker metal is more suitable for stationary outdoor kitchens, while for this type of stove it significantly increases both the weight and cost of the construction.

Package contents

Stove body — 1 pc.
Removable legs — 4 pcs.
Pull-out ash pan — 1 pc.
Chimney elbow — 1 pc.
35 cm chimney sections — 3 pcs.

Important information

Use the stove outdoors only on a stable, non-combustible surface.
Do not move the stove until it has cooled completely.
Do not leave the stove wet, damp or exposed to precipitation for long periods.
The heat-resistant coating does not eliminate the need for proper metal care and protection against corrosion.
After use, clean and dry the stove and store it in a dry place.
Additional accessories are sold separately.

What is it suitable for?

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm is multifunctional and suitable for Uzbek kazans, Afghan pressure cookers, different cookware, cast iron grates and ring sets.

Uzbek kazans and Afghan pressure cookers

Designed for 16–22 litre Uzbek kazans and also suitable for Afghan pressure cookers and other appropriately sized cookware.

Grates and other cookware

A cast iron grate or ring set allows frying pans, pots and other smaller-diameter cookware to be used.

Cooking and evening fires

Suitable for outdoor cooking and, after cooking, it can also be used as an evening fire pit.

Preparation before first use

Assemble the stove

Install the four legs, secure them with the bolts and assemble the chimney using the elbow and three sections.

Check stability

Place the stove on a level, stable and non-combustible surface and make sure the legs and chimney are securely fixed.

Perform the first heating

During the first use, heat the stove gradually outdoors, check the draught and become familiar with regulating the airflow.

Important: during the first heating, the heat-resistant coating heats up and fully cures. Use the stove outdoors only and do not touch heated surfaces.

Care and storage

Proper care

Clean the ash pan after the stove has cooled completely
Remove dry ash and fuel residue
Dry the stove completely after contact with moisture
Store in a dry and ventilated place
Use a protective cover against moisture and dust

What not to do

Do not leave the stove exposed to rain or snow for long periods
Do not store the stove while wet or damp
Do not move the stove while it is hot
Do not place it on a combustible or unstable surface
Do not disassemble the chimney until it has cooled completely

Technical specifications

Product information

Product typeKazan stove with chimney

Suitable for kazans16–22L

Outer diameter44 cm

Inner diameter of kazan opening43.4 cm

Metal thickness3 mm

Bottom thickness3 mm

MaterialBlack metal (standard steel)

CoatingMatt heat-resistant paint up to 800 °C

Overall height with chimney173 cm

Height from ground to body66 cm

Chimney diameter8.5 cm

Length of one chimney section35 cm

Number of chimney sections3 pcs.

Chimney elbow1 pc.

Draught controlDamper, door and ash pan

Door positions3 positions

Smoke deflectorBuilt in

Chimney retainerBuilt in at chimney outlet

Ash panPull-out and removable

Legs4 removable, secured with bolts

ConstructionFully dismountable

Weight21 kg

Approximate service life8–10 years with correct use and care

Country of manufactureUzbekistan

Frequently asked questions

Which kazans is this stove designed for?

Stove for 16–22L Kazan with Chimney D44 cm, 3 mm is designed for 16–22 litre kazans. A cast iron grate or ring set also allows other suitably sized cookware to be used.

Why is there a smoke deflector inside the stove?

The smoke deflector redirects flames and hot flue gases inside the stove instead of allowing them to escape directly into the chimney. This helps heat the kazan more evenly and use the generated heat more efficiently.

How is combustion intensity regulated?

The combustion intensity is regulated using the chimney damper, firebox door and pull-out ash pan. Changing the position of these components adjusts the draught and airflow.

What positions does the firebox door have?

The door can be fully closed, left slightly open by placing the handle in the outer locking hole, or fully opened.

Can the chimney be extended?

Yes. The chimney consists of three 35 cm sections and one elbow. An additional chimney section can be purchased separately if required.

What is the retainer at the chimney outlet for?

The external retainer secures the chimney position, reduces the possibility of movement and helps prevent the pipe from falling due to wind or accidental impact.

Can an Afghan pressure cooker and other cookware be used?

Yes. Uzbek kazans, Afghan pressure cookers, frying pans, pots and other suitably sized cookware can be used on the stove. A cast iron grate or metal or cast iron ring set is recommended for smaller-diameter cookware.

Can food be cooked directly on the grate?

Yes. Meat, fish, vegetables and other food can be cooked directly on a suitable cast iron grate. The grate is sold separately.

Is 3 mm steel sufficient for this stove?

In practical use, 3 mm steel provides a good balance between durability, weight and ease of transportation. Thicker metal significantly increases the stove’s weight and cost and is more suitable for stationary outdoor kitchens.

What is the service life of the stove?

Based on practical experience, with correct use, drying and protection against precipitation, the approximate service life of the stove is 8–10 years.

Can the stove be left outdoors?

The stove should not be left exposed to rain, snow or moisture for long periods. Once completely cooled, it should be dried and stored in a dry place, preferably under a suitable protective cover.

Which additional accessories are available?

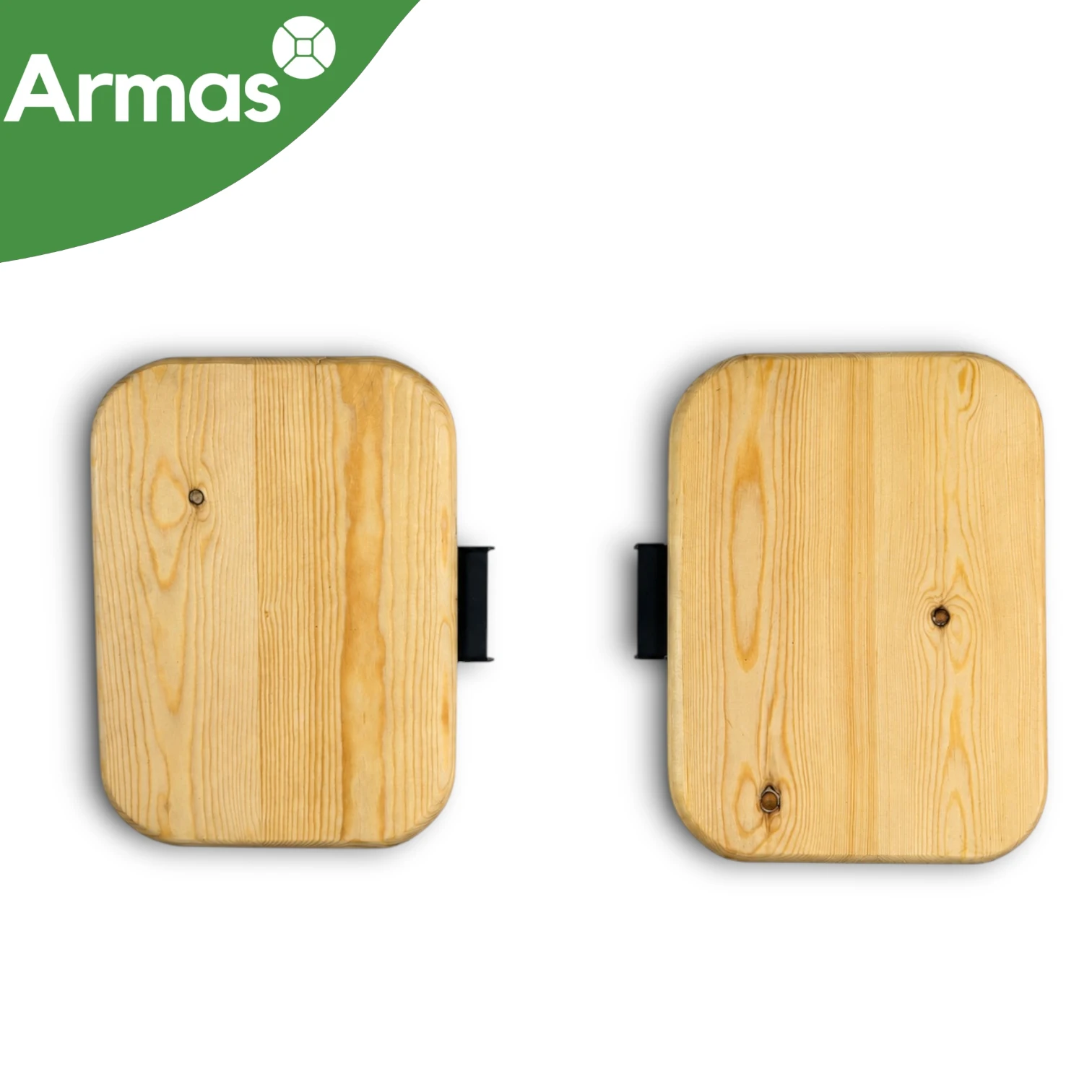

Side shelves, a protective cover, cast iron grate, metal or cast iron ring set, cast iron pan-lid and an additional chimney section are available separately.
